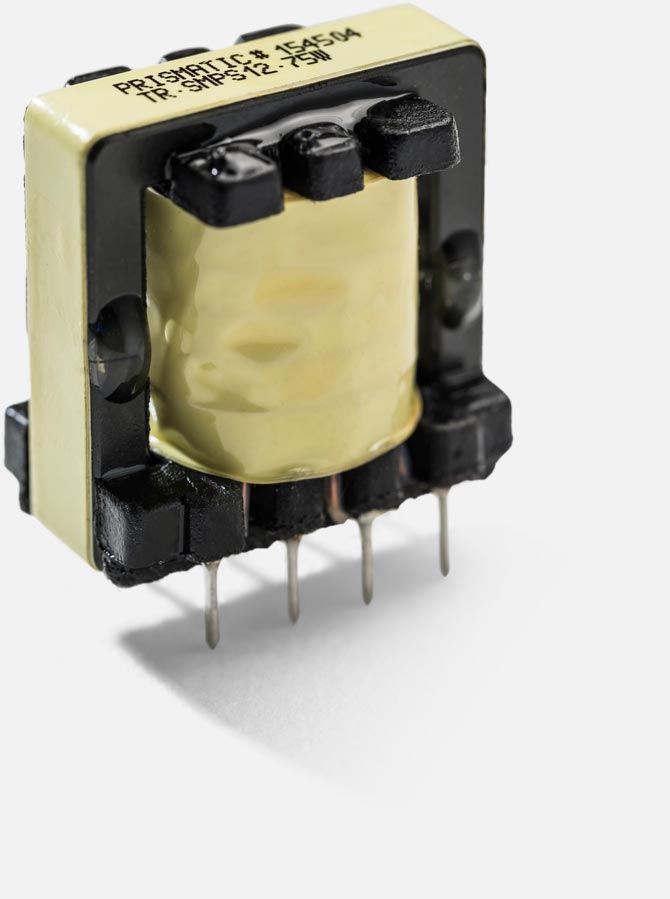

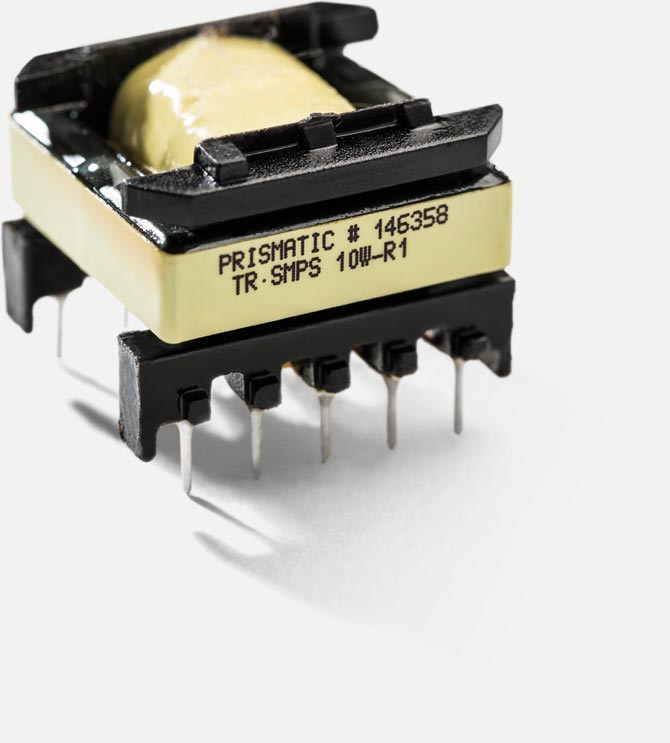

EE2507
Ferrite Transformers- 10 Pins
- vertical Bobbin
In this section, we have listed core and bobbin geometries that are most commonly used to build switching transformers. Do reach out to us if you need a specific size that isn’t listed here. You may use the data provided to finalize the transformer design and request a quote and samples. Footprint data provided is subject to change so check with us before you finalize your PCB layout on this basis.
Tech Specs
- Winding Width
- 15.5mm
- Winding Height
- 4.0mm
- Core Ae
- 52.5sq.mm
- Core Le
- 57.5mm
Notes
- RoHS 3 compliance is available on most products, subject to our confirmation.
- Specifications subject to change without notice.
- Document Number: PEPL-CAT-13
- Release: 01/06/2009
