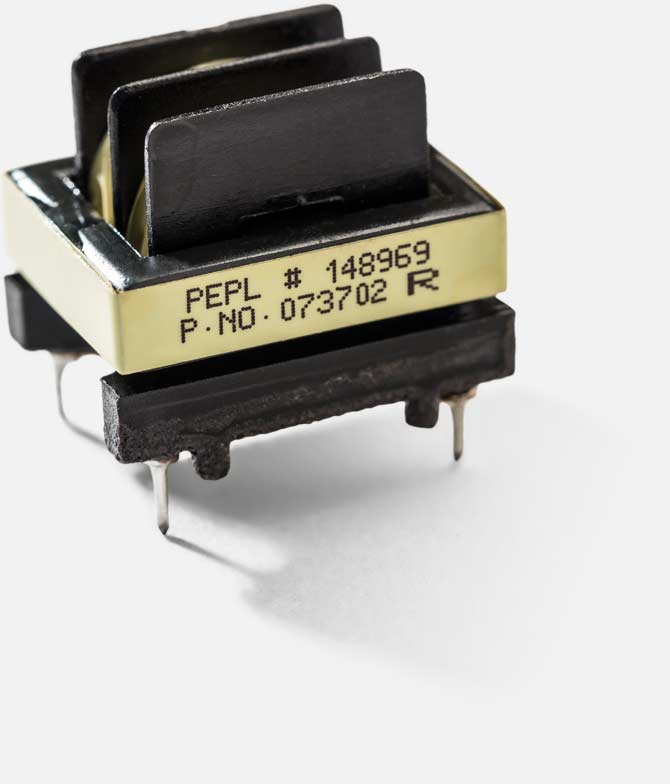

EE2506

Common Mode
  • 4 Pins
  • vertical Base

Tech Specs

Quantity Part # Order codeInductance (mH) (min)Current Rating (A) (steady state)Leak Inductance (µH) (typical)DC Resistance (Ω) (max)
P200520.574.0090.025
P200541.003.00150.050
P200562.202.50300.095
P200584.701.75550.160
P200608.201.501250.250
P2006110.001.201250.340
P2006315.001.001750.450
P2006522.000.752650.765
P2006733.000.554001.450
P2006947.000.455201.900
Technical Drawing of EE2506 / 4P / Vertical
All dimensions are in mm. Not to scale.
Isolation
At 50Hz / 4mA / 1 min
Between windings
1500V AC
Windings to core
1500V AC
Insulation Resistance
At 500V DC
Greater than 100MΩ

Notes

  1. RoHS 3 compliance is available on most products, subject to our confirmation.
  2. Specifications subject to change without notice.
  3. Document Number: PEPL-CAT-13
  4. Release: 01/06/2009
