Open Loop Single Supply: HOFS

Hall Effect

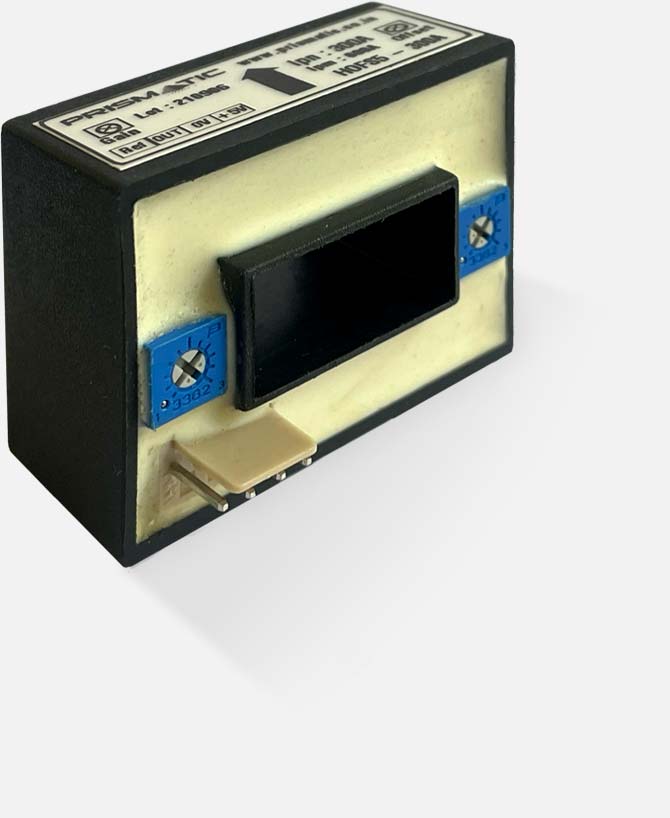

Prismatic’s fixed type current sensors operate on the well-known Hall Effect principle. These current sensors are an excellent solution for sensing of DC, AC and Mixed Currents of up to 50KHz, with excellent linearity and temperature stability. These sensors can be panel mounted with the primary cable or busbar passing through, or simply suspended on the Primary Busbar to obtain reliable signals proportionate to the primary currents.

Tech Specs

Technical Drawing of HOFS
All dimensions are in mm. Not to scale.
Schematic Diagram of HOFS
Current Rating
100A, 200A, 250A, 300A, 400A, 500A, 600A
Maximum Current
Up to 200%
Operating Temperature
-25°C to +85°C
Bandwidth
DC to 50KHz
Supply
+5V DC
Output Signal at Rated Current
+2.5V ref ± 1V (Output is 2.5V at Zero Primary Current)
Linearity
≤ 1%
Temperature Stability
< 350ppm/°C
Connection Options
Plug-in connectors

Notes

  1. Other configurations on request
  2. RoHS 3 compliance is available on most products, subject to our confirmation.
  3. Specifications subject to change without notice.
  4. General Tolerance: ± 1.0mm.
