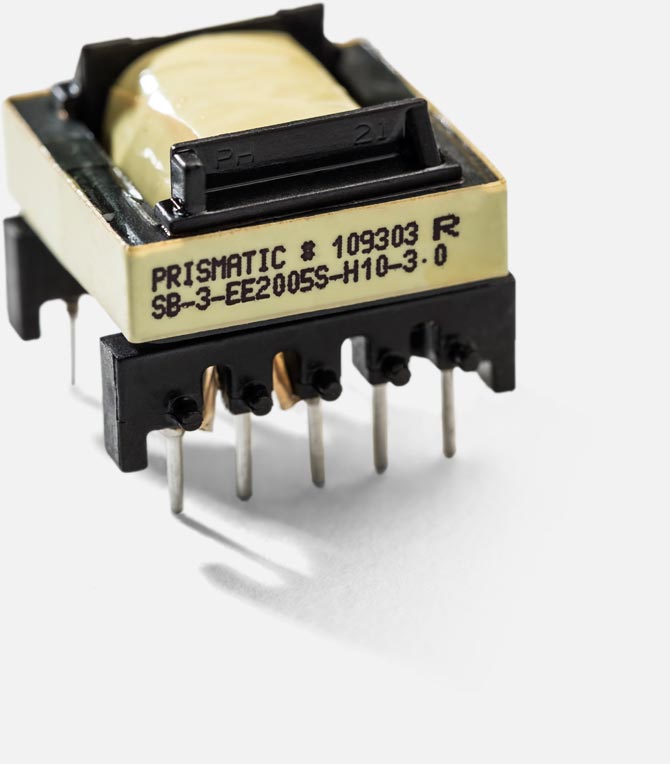

EE2005

Ferrite Transformers
  • 10 Pins
  • horizontal Bobbin

In this section, we have listed core and bobbin geometries that are most commonly used to build switching transformers. Do reach out to us if you need a specific size that isn’t listed here. You may use the data provided to finalize the transformer design and request a quote and samples. Footprint data provided is subject to change so check with us before you finalize your PCB layout on this basis.

Tech Specs

Technical Drawing of EE2005 10 Pins Horizontal Base
All dimensions are in mm. Not to scale.
Winding Width
12mm
Winding Height
3.5mm
Core Ae
33.5sq.mm
Core Le
44.9mm

Notes

  1. RoHS 3 compliance is available on most products, subject to our confirmation.
  2. Specifications subject to change without notice.
  3. Document Number: PEPL-CAT-13
  4. Release: 01/06/2009
