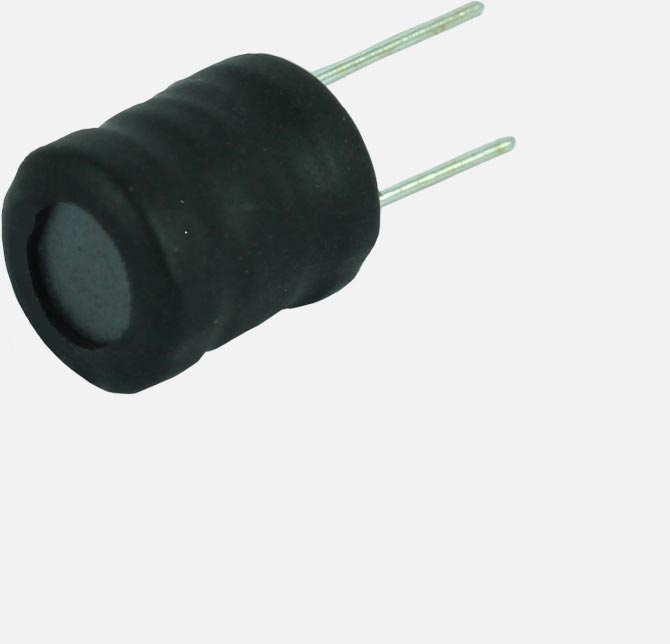

Drum Core 10×12

Drum Core Chokes

Tech Specs

Quantity Part # Drum CoreInductance @1KHz 0.3V (µH)DC Resistance @20°C (mΩ) (max)Rated Current (rms) (mA)Isat (mA)
10×123.3±20%103000300
10×1210.0±20%1529002900
10×1215.0±20%3523002300
10×1233.0±20%4515001500
10×1252.0±20%8013001300
10×1290.0±20%120900900
10×12120.0±20%140850850
10×12170.0±20%310350800
10×12330.0±20%475400500
10×12525.0±20%575425425
10×121000.0±20%1300290290
10×121500.0±20%1500250250
10×122200.0±20%3000175200
10×123300.0±20%3750100100
10×124600.0±20%5000100100
10×1210000.0±20%120009090
Technical Drawing of Drum Core 10×12
All dimensions are in mm. Not to scale.

Notes

  1. Inductance value is ≥ 90% initial value at Isat.
  2. Drum Chokes are normally provided with heat shrink sleeve covering & can be encapsulated on request.
  3. RoHS 3 compliance is available on most products, subject to our confirmation.
  4. Specifications subject to change without notice.
  5. Document Number: PEPL-CAT-13
  6. Release: 01/06/2009
